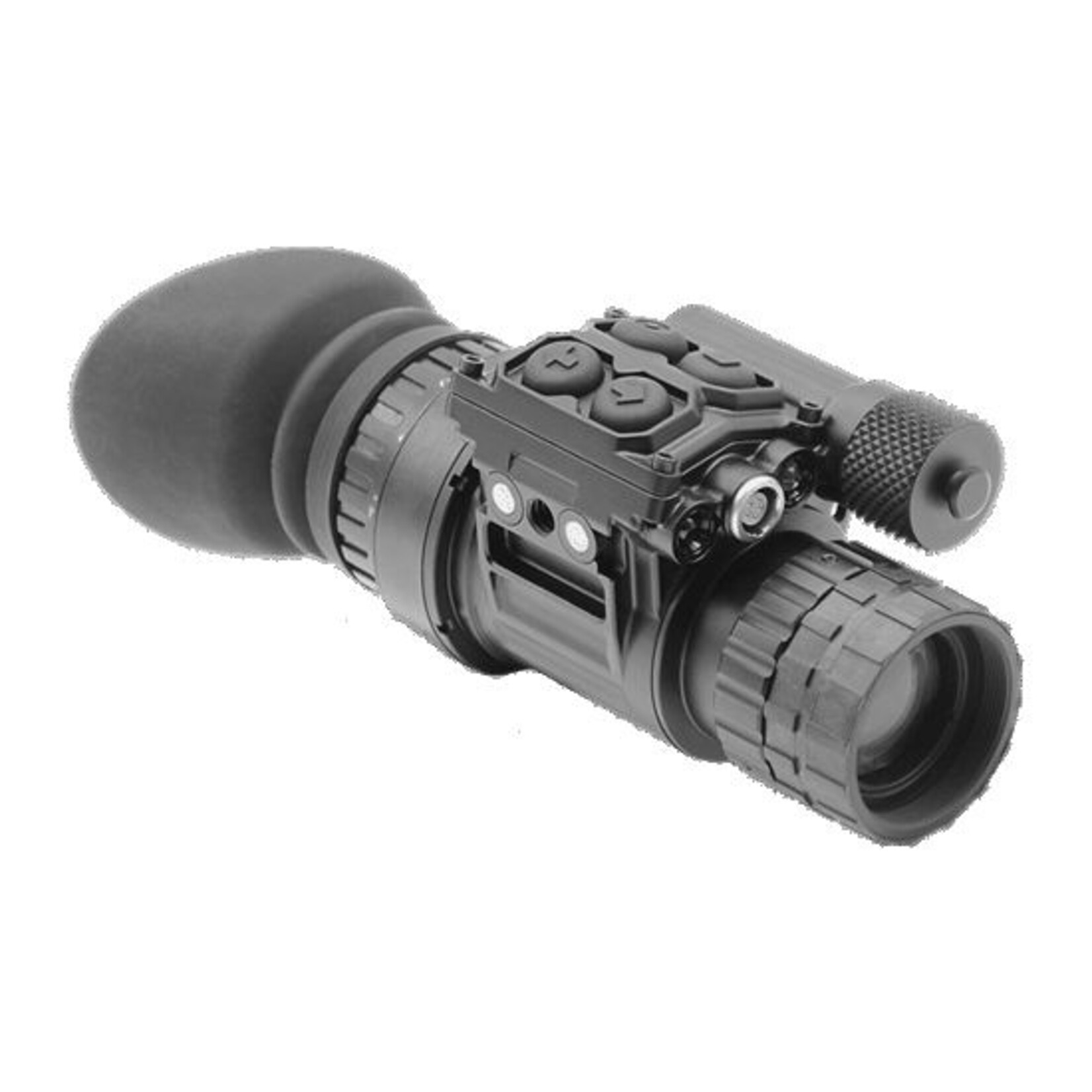

The LUX-14 has been developed to provide the user with cutting-edge night vision technology in a lightweight and compact MIL-SPEC package. With digital push button controls that can be easily operated, even while wearing tactical gloves, it is the smallest and lightest in its class, weighing just over 250 grams with 18mm gold standard tubes. But even in the small and light configuration the nitrogen purged fully aluminium housing, the LUX-14 is robust and hence a reliable tool in any weather conditions. Its nitrogen purged aluminum housing makes it robust and reliable in all weather conditions. The image quality has also been optimized to give operators a clear, bright image in low light settings. You also have access to an external power port that allows you to connect it to a GSCI MVP-240 battery pack or any other source of portable power source.

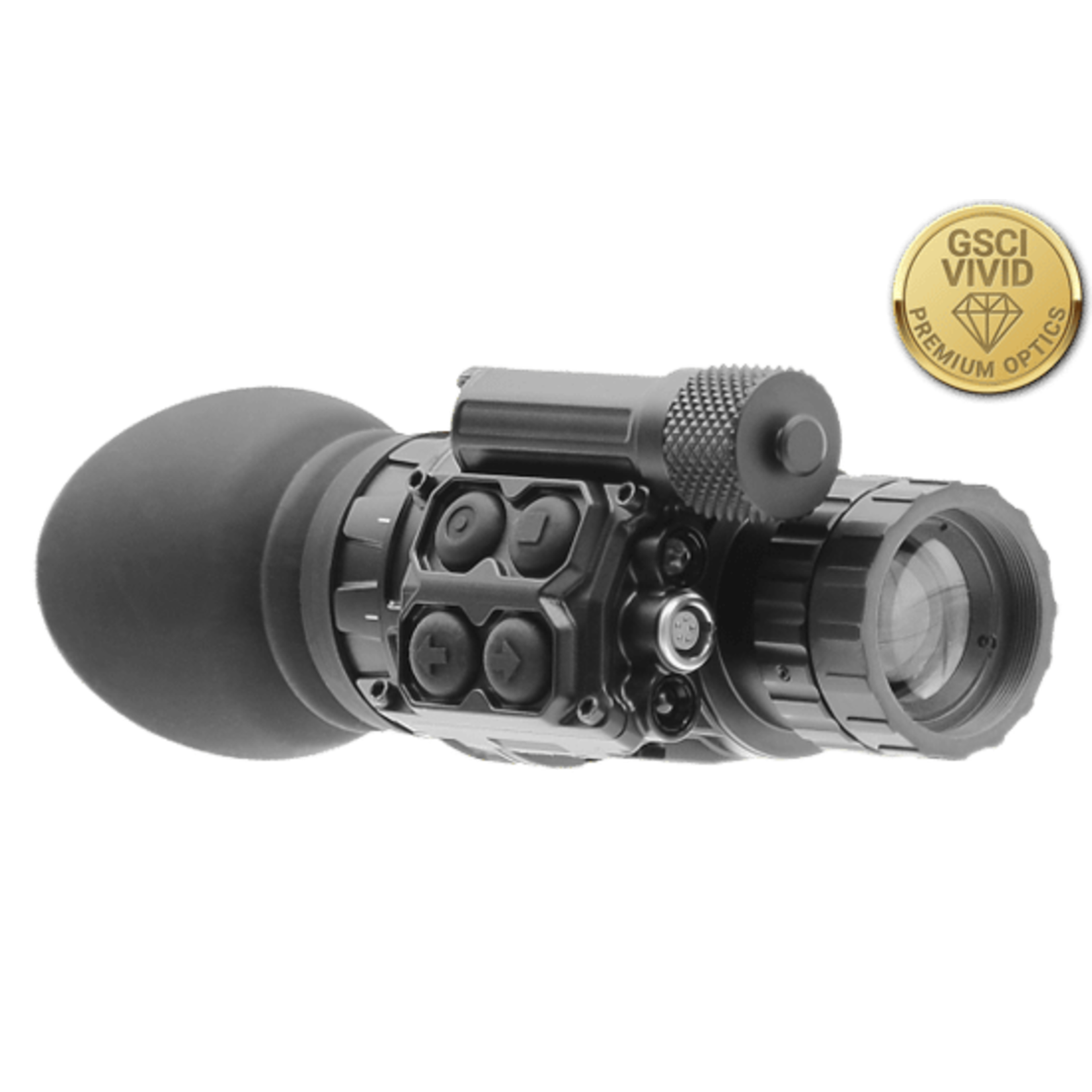

The LUX-14L is an upgraded version of the traditional night vision monocular system. This innovative instrument is widely used for a variety of tasks and operations, being the result of our most recent technological breakthroughs, feedback from expert users, and GSCI’s engineering achievements over 30 years. It features proprietary GSCI-VIVID high-performance front and rear optics – the lightest optics available on the market today and offers a crystal-clear image. This monocular system is one of the lightest you can find!
Technical Data |
||
|
LUX-14
|
LUX-14L
|
Lens System |
27mm. f/1.2 |
27mm. f/1.2 |
Diopter Adjustment Range |
-6 ... +2 |
-6 .. +2 |
Proprietary GSCI-VIDID Premium Optics |
No |
Yes |
Digital Push Button Controls |
Yes |
Yes |
Optical Magnification |
1X |
1X |
Field Of View (FOV)* |
40° |
40° |
IR Illuminator |
Yes: Built-in |
Yes: Built-In |
Bright Light Sensor |
Yes: Built-In |
Yes: Built-In |
IR LED Indicator |
Yes |
Yes |
Bright Light LED Indicator |
Yes |
Yes |
Low Battery LED Indicator |
Yes |
Yes |
Stow Safety Feature |
Yes |
Yes |
Flip-Up-Off Feature |
Yes |
Yes |
External Power Port |
Optional |
Optional |
Power Source |
1x AA or MVP-240 |
1x AA or MVP-240 |
Battery Life (AA) |
40 Hours |
40 Hours |
Battery Life on MVP-240 |
240 Hours |
240 Hours |
Environmental Protection |
Waterproof |
Waterproof |
Operating Temperature |
-40°C .. +50°C |
-40°C .. +50°C |
Dimensions |
108 x 58 x 51 mm |
104 x 58 x 51 mm |
Weight |
202 grams** |
162 grams** |
Warranty |
7 Years, Limited |
7 Years, Limited |
* Field Of View (FOV) values are valid if the system is equipped with an 18mm Image Intensifier Tube |
||
** Weight of the unit excludes an IIT due to its weight variations. Typical weight of an IIT is between 70 and 85 grams as per IIT manufacturers' specifications. |
||
Specifications are presented for optical-electronic-mechanic assemblies only and do not include technical characteristics of image intensifier tubes. |
